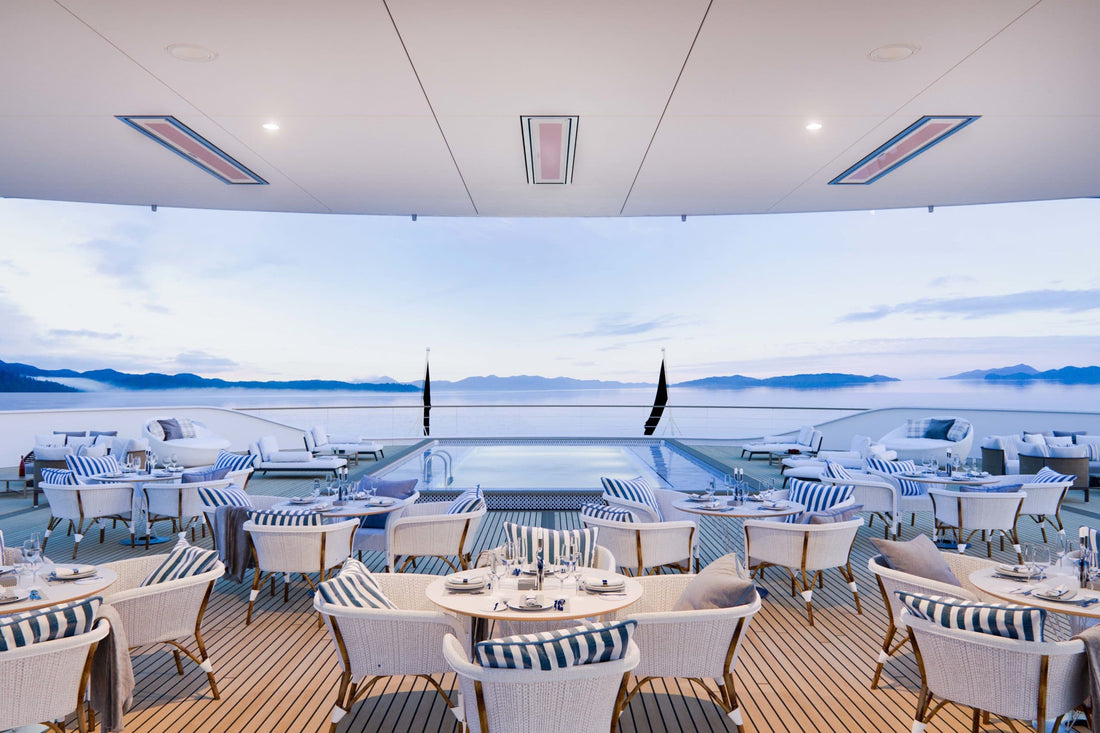

A Sleek, Discreet Patio Heating Solution
If you love the clean, modern look of a flush-mounted ceiling, the Bromic Platinum Smart-Heat™ Electric series offers exactly that with its Low Clearance Recess Kit. Designed to safely integrate these high-performance heaters into covered patios and pergolas, this kit provides a seamless, elegant appearance without compromising heat output or safety.
Whether you’re an architect, contractor, or homeowner working with a certified electrician, this guide will help you understand the basics of a successful recessed installation.
Why Choose a Recessed Heater?
- Streamlined design – Heater sits flush with the ceiling for a clean, unobtrusive look.
- Space saving – Keeps heating fixtures out of the way in tighter layouts.
- Optimized comfort – Precise placement ensures radiant warmth where it’s needed most.
- Safe integration – The Low Clearance Kit is engineered specifically for safe installation in spaces with reduced ceiling height.
Safety & Clearance Requirements
According to Bromic’s specifications:
· MINIMUM GAP BETWEEN JOISTS
o 240mm (9.4”) - [2300W/3400W]
o 317mm (12.5”) - [4500W]
· Maintain Minimum - 180mm (7.1") (From glass surface).
· Ensure ventilation slots remain unobstructed to prevent overheating.
· Use only with Bromic Platinum Smart-Heat™ Electric models (2300W, 3400W, 4500W).
⚠️ Important Safety Warning
Always refer to the official Bromic installation manual for detailed instructions, diagrams, and specifications. Installation must be performed by a licensed electrician in accordance with local electrical codes. Improper installation can create serious hazards and may void your warranty.
- Low Clearance Recess Instruction Manual
- Platinum Smart-Heat™ Electric 2.3kW & 3.4 kW Instruction Manual
- Platinum Smart-Heat™ Electric 4.5kW Instruction Manual
What You’ll Need
- Bromic Platinum Smart-Heat™ Electric Heater (2300W, 3400W, or 4500W)
- Bromic Low Clearance Ceiling Recess Kit (model-specific)
- Dedicated 220–240V electrical circuit
- Standard installation tools (drill, screws, wiring tools)
- A certified electrician to complete all wiring and compliance checks
Step-by-Step Overview
1. Prepare the Ceiling Cutout
- Use the provided cutout template for precise sizing.
- Double-check model dimensions to avoid fit issues.
ceiling cut-out with the dimensions :
2300W - 995mm x 240mm (39.2” X 9.4”)
3400W - 1430mm x 240mm (56.3” X 9.4”)
4500W - 1550mm x 317mm (61.0” X 12.5”)
2. Install the Recess Box
- Secure the recess box into the ceiling cavity.
- Confirm clearances above and around the box for airflow.
3. Run Electrical Wiring
- Feed supply wiring through the cable entry point.
- Connect wires according to the Bromic wiring diagram (single or multi-heater setup).
- Ensure ground connection is properly secured.
4. Mount the Heater
- Insert the heater into the recess box.
- Secure with provided brackets and screws.
- Verify alignment so the heater sits flush with the ceiling.
5. Final Safety Check
- Confirm that ventilation slots are clear.
- Test the heater and any connected controls.
- Ensure no exposed wiring or loose fittings remain.
Common Mistakes to Avoid
- Blocking ventilation → leads to overheating and damage.
- Incorrect cutout size → causes poor fit or visible gaps.
- Using the wrong heater model → only Platinum Electric is compatible with this kit.
- DIY wiring → must be performed by a certified electrician.
FAQ
Q: Can I use the Low Clearance Kit with Bromic Tungsten heaters?
A: No. This kit is designed exclusively for the Platinum Smart-Heat™ Electric series.
Q: What ceiling types does this work with?
A: Works with most standard ceilings, provided minimum clearances and ventilation are respected.
Q: Do I need a certified electrician?
A: Yes. All wiring and compliance checks must be performed by a licensed professional.
Q: Does recessed installation affect performance?
A: No — when installed correctly, you’ll enjoy the same radiant heat with a much sleeker appearance.
Final Thoughts
Installing your Bromic Platinum Smart-Heat™ Electric heater with the Low Clearance Recess Kit is one of the best ways to achieve a modern, flush-mounted design while delivering premium outdoor comfort.
With the right planning and professional installation, you’ll have a safe, efficient, and visually stunning heating solution that elevates your patio or pergola.
